WCF Ajax Web Service を使用すると バックエンドで  WCF サービス を使用する AJAX が簡単に作成できます。 WCF Ajax Web Service を html などの ASP.NET ではないコンテンツから使用できる方法を記載します。

動作確認環境

  • 動作環境:.NET 3.5, IIS 6
  • 開発環境:Visual Studio 2008 SP1 Professional

1. WCF サービスを作成する

最初に WCF Ajax Web Service 用の WCF サービスを作成します。機能としてはWCF Sample 017:WCF で AJAX Serviceを作成してみる。 で作成したものと同じもサービスです。

1.1 プロジェクトの作成

WCF サービスをプロジェクトテンプレートとして、プロジェクトを作成します。プロジェクト名は WcfTest として説明を記述します。既定で作成されるIService1.cs, Service1.svc, Service.svc.cs を削除します。

1.1 PersonService サービスの作成

最初にモデルクラスを作成します。プロジェクトにPerson.cs というクラスを作成します。単純なデータ転送用のクラスです。

namespace WcfTest
{
    [DataContract]
    public class Person
    {
        public Person(int id, string firstname, string lastname)
        {
            ID = id;
            FirstName = firstname;
            LastName = lastname;
        }
        [DataMember]
        public int ID;
        [DataMember]
        public string FirstName = string.Empty;
        [DataMember]
        public string LastName = string.Empty;
    }
}



次に プロジェクトから新規項目を追加します。テンプレートにWCFサービスを選択肢、 PersonService を作成します。

サービスコントラクト IPersonService.cs を次のように編集します。

namespace WcfTest
{
    // メモ: ここでインターフェイス名 "IPersonService" を変更する場合は、Web.config で "IPersonService" への参照も更新する必要があります。
    [ServiceContract(Namespace="Wcf.PersonService")]
    public interface IPersonService
    {
        [OperationContract]
        [WebGet]
        IList<Person> GetPersons();

        [OperationContract]
        [WebGet]
        Person GetParsonByID(int id);
    }
}

サービスクラス PersonService.svc.cs を次のように編集します。GerPersons, GetParsenByID を実装しています。サンプルとして使用するために定義しています。

namespace WcfTest
{
    // メモ: ここでクラス名 "PersonService" を変更する場合は、Web.config で "PersonService" への参照も更新する必要があります。
    [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
    public class PersonService : IPersonService
    {
        private static IList<Person> _persons = new List<Person>();

        static PersonService()
        {
            _persons.Add(new Person(1, "AAaiueo", "AUIEO"));
            _persons.Add(new Person(2, "kakikukeko", "KAKIKUKEKO"));
            _persons.Add(new Person(3, "sashisuseso", "SASHISUSESO"));
        }
        #region IPersonService メンバ

        public IList<Person> GetPersons()
        {
            return _persons;
        }

        public Person GetParsonByID(int id)
        {
            return _persons.FirstOrDefault(x => x.ID == id);
        }

        #endregion
    }
}

1.3 Web.config の編集

WCF Ajax Web Service として動作するようにWeb.configを編集します。 behavior をenableWebScript に設定、 バインディングを webHttpBinding となるように設定を変更しています。

<system.serviceModel>
  <services>
   <service behaviorConfiguration="WcfTest.PersonServiceBehavior"
    name="WcfTest.PersonService">
    <endpoint address="" behaviorConfiguration="AjaxBehavior" binding="webHttpBinding"
     contract="WcfTest.IPersonService" />
   </service>
  </services>
  <behaviors>
   <endpointBehaviors>
    <behavior name="AjaxBehavior">
     <enableWebScript />
    </behavior>
   </endpointBehaviors>
   <serviceBehaviors>
    <behavior name="WcfTest.PersonServiceBehavior">
     <serviceDebug includeExceptionDetailInFaults="false" />
    </behavior>
   </serviceBehaviors>
  </behaviors>
</system.serviceModel>

2. html から WCF Ajax Web Service を使用する

2.1 ASP.NET Ajax Library をダウンロードしてプロジェクトに設定する

Microsoft Ajax Library を以下のサイトからダウンロードします。本記事では、 2009/11/17 stable 版をダウンロードして動作確認をしています。

- Microsoft ASP.NET Ajax Library (記事作成時点で最新版はASP.NET Ajax Library 0911 Beta,2009/11/17 stable)
http://ajax.codeplex.com/Release/ProjectReleases.aspx?ReleaseId=35895

- Microsoft ASP.NET AjaxLibrary (ASP.NET Ajax Extention 1.0 に該当をダウンロードする場合)
http://www.asp.net/ajax/downloads/library/

ダウンロードした zip ファイルを解凍して、Scriptsフォルダの MicrosoftAjax.js と MicrosoftAjaxWebForms.js を WCFサービスプロジェクトに js フォルダを作成しコピーします。プロジェクトに含めることを忘れないでください。

2.2 html から WCF Ajax Web Service を呼び出す

2とおりの方法で html から WCF Ajax Web Service を使用できるように html ファイルを作ってみました。 プロジェクトに WcfStatic.html と WcfStatic2.html を作成してそれぞれ次のように編集します。

以下が、 WcfStatic.html です。 javascript 実行時に js ファイルを取得してから、 Wcf Ajax Web Service のクライアント側のプロキシを使用して Wcf Ajax Web Service を利用しています。

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" >
<head>
    <title>WCF Ajax Web Service を html で使用する</title>
    <script type="text/javascript">
      function load() {
         var xmlreq = new XMLHttpRequest();
         xmlreq.open('GET', 'js/MicrosoftAjax.js', false);
         xmlreq.send('')
         eval(xmlreq.responseText);

         xmlreq = new XMLHttpRequest();
         xmlreq.open('GET', 'PersonService.svc/js', false);
         xmlreq.send('')
         eval(xmlreq.responseText);


         var proxy = new Wcf.PersonService.IPersonService();
         proxy.GetParsonByID(1, onSuccess, onFail, null);
      }
      function onSuccess(result){
        document.getElementById("txtId").value = result.ID;
        document.all.txtName.value = result.FirstName;
        // Microsoft AJAX Library 1.0 の MicrosoftAjax.js を使用する場合は
        // result.d.ID というように d が必要です。
        // document.getElementById("txtId").value = result.d.ID;
      }
      function onFail(result){
      }
    </script>
</head>
<body>
  <p>静的コンテンツ(html)から、 WCF Ajax Web Service を呼び出す方法</p>
  <input id="txtId" type="text" />
  <input id="txtName" type="text" />
  <input id="btnId" type="button"  value="おして!!" onclick="javascript:load()" />
</body>
</html>

次に、以下が WcfStatic2.html です。script タグを使用して、 js/MicrosoftAjax.js, js/MicrosoftAjaxWebForms.js を設定して、WCF Ajax Web Service を使用しています。

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" >
<head>
    <title>WCF Ajax Web Service を html で使用するその2</title>
    <script type="text/javascript" src="js/MicrosoftAjax.js"></script>
    <script type="text/javascript" src="js/MicrosoftAjaxWebForms.js"></script>
    <script type="text/javascript" src="PersonService.svc/js"></script>

    <script type="text/javascript">
      function load() {
         var proxy = new Wcf.PersonService.IPersonService();
         proxy.GetParsonByID(1, onSuccess, onFail, null);
      }
      function onSuccess(result){
        document.getElementById("txtId").value = result.ID;
        document.all.txtName.value = result.FirstName;
        // Microsoft AJAX Library 1.0 の MicrosoftAjax.js を使用する場合は
        // result.d.ID というように d が必要です。
        // document.getElementById("txtId").value = result.d.ID;
      }
      function onFail(result){
      }
    </script>
</head>
<body>
  <p>静的コンテンツ(html)から、 WCF Ajax Web Service を呼び出す方法</p>
  <input id="txtId" type="text" />
  <input id="txtName" type="text" />
  <input id="btnId" type="button"  value="おして!!" onclick="javascript:load()" />
</body>
</html>

3. 実行結果

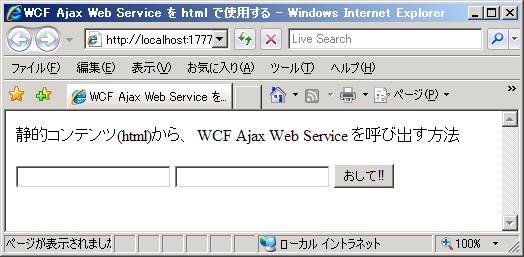

実行結果は次のようになります。

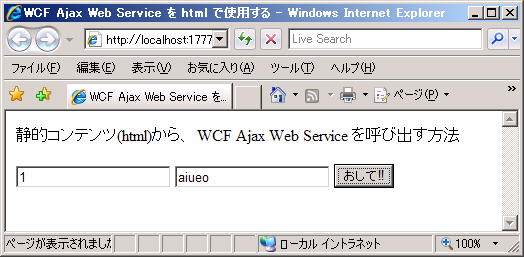

おしてボタンをクリックすると、値がセットされます。動作自体は WcfStatic.html, WcfStatic2.html ともに同じです。

4. まとめ

今回の説明は以上です。ASP.NET AJAX Library は ASP.NET に限らずhtmlページなどで使用できます。そのため、今回の紹介した方法で WCF Ajax Web Service を使用できます。

紹介した方法を使用すると、 Dynamics CRM の ISV配下に アドオンとして追加したhtmlもWCF Ajax Web Service を使用できます。ただし、Dynamics CRM Web Service を WCF サービス側で使用する場合は aspNetCompatibilityEnabled を true にする必要があります。
